| 应用范围：测量 | 种类：磁环电感 | 品牌：彦尔 |
| 型号：MSQ-125 | 绕线形式：单层间绕式 |
| Type | Ratio(A) | Burden(VA) | |
| Class:0.5 | Class:l.0 | ||
| MSQ-125 | 1000/5 | 5 | 10 |
| MSQ-125 | 1200/5 | 7.5 | 10 |
| MSQ-125 | 1500/5 | 10 | 15 |
| MSQ-125 | 1600/5 | 10 | 15 |
| MSQ-125 | 2000/5 | 15 | 20 |
| MSQ-125 | 2500/5 | 15 | 20 |
| MSQ-125 | 3000/5 | 15 | 20 |
| MSQ-125 | 4000/5 | 15 | 20 |
| MSQ-125 | 5000/5 | 20 | 20 |
| MSQ-125 | 6000/5 | 20 | 20 |

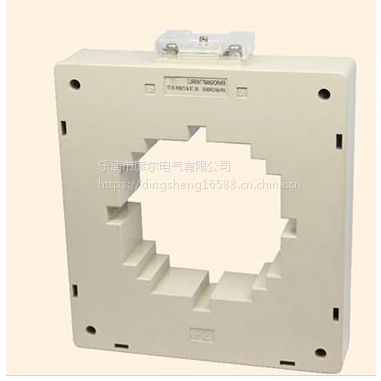

MSQ SERIES DESCRIPTION
A range of (7 Models) classic plastic case current transformer, low cost, rich range can matct most requirements internationally.
MSQ系列电流互感器是我司电流互感器***之作，共有7个规格。低成本，能够满足常规互感器 适用需求。该系列产品通过了CE认证，被众多国家的电力部门选用为电能计量用互感器
FEATURE
Two built in ????????????????xing methods: Panel Busbar
两种安装方式：底板/汇流排
Transparent terminal cover
透明端子盖
Primary current up t0 6000A
额定一次电流达到6000A
SPECIFICATIONS
Rated Frequency（额定频率） | 50/60Hz 3kv AC.(1min) 60ln 2.5lth 0.72Kv AC. 1 .2In -10℃~50℃ VO FS5 ***/1A |
STANDARD
IEC60044-1 GB1208-2006
